SS 316L Quad Cleat:
Application
In all cable installa ons, an essen al factor is to ensure that all cables are secured with the correct cleats for the cable, applica on, and
environment. The BICCQ series of cleats support and secure all cables in a quad forma on throughout the system during normal opera on and during fault condi ons that may occur. System integrity is maintained, and cable damage can be prevented.
The BICCQ range of cleats are designed to meet with requirements to EN 61914:2016 & IEC 61914:2015 standards. The cleats are manufactured from SS316L with excellent durability characteris cs, resistant to corrosion and adverse weather condi ons. The cleats are designed to hold and retain all types of cables in a trefoil forma on.

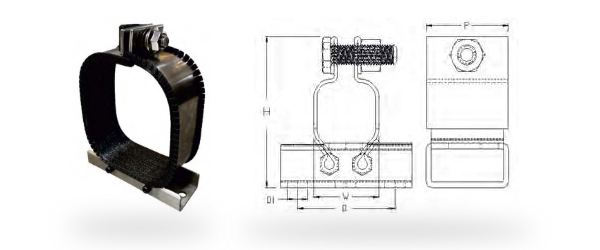

SS 316L Quad Cleat:
| Quad Part No. /th> | Cable Ø Range (mm) | Dimensions (mm) | ||||
|---|---|---|---|---|---|---|
| W | H | D | P | Fixing Hole Ø D1 | ||
| BICCQ16-20 | 16–20 | 40 | 88 | 60 | 50 | 1.5 × M10 |
| BICCQ19-23 | 19–23 | 46 | 95 | 60 | 50 | 1.5 × M10 |
| BICCQ21-27 | 21–27 | 52 | 101 | 60 | 50 | 1.5 × M10 |
| BICCQ26-31 | 26–31 | 60 | 109 | 60 | 50 | 1.5 × M10 |
| BICCQ30-34 | 30–34 | 67 | 116 | 60 | 50 | 1.5 × M10 |
| BICCQ33-37 | 33–37 | 74 | 123 | 60 | 50 | 1.5 × M10 |
| BICCQ36-40 | 36–40 | 80 | 129 | 60 | 50 | 1.5 × M10 |
| BICCQ41-45 | 41–45 | 90 | 139 | 76 | 50 | 1.5 × M10 |
| BICCQ44-47 | 44–47 | 96 | 144 | 76 | 50 | 1.5 × M10 |
| BICCQ46-51 | 46–51 | 101 | 150 | 76 | 50 | 1.5 × M10 |
| BICCQ49-53 | 49–53 | 106 | 155 | 106 | 50 | 1.5 × M10 |
| BICCQ52-56 | 52–56 | 112 | 161 | 106 | 50 | 1.5 × M10 |
| BICCQ55-59 | 55–59 | 118 | 167 | 106 | 50 | 1.5 × M10 |
| BICCQ58-62 | 58–62 | 124 | 173 | 106 | 50 | 1.5 × M10 |
| BICCQ61-65 | 61–65 | 130 | 179 | 126 | 50 | 1.5 × M10 |
| BICCQ64-68 | 64–68 | 136 | 185 | 126 | 50 | 1.5 × M10 |
| BICCQ67-71 | 67–71 | 142 | 191 | 126 | 50 | 1.5 × M10 |
Dimensions are displayed in millimeters unless otherwise stated.
Disclamier: The dimensions provided are for guidance only and BICC Components Ltd reserves the right to change these without prior notification. For any critical application please contact the sales office to check th latest data.
