Cast Iron Claw Cleat (CICC-Cleat):
Application
In all cable installations, an essential factor is to ensure that all cables are secured with the correct cleats for the cable, application, and
environment. The CICC series of cleats support and secure all cables in a single formation throughout the system during normal operation and uring fault conditions that may occur. System integrity is maintained, and cable damage can be prevented.
The CICC range of cleats comply with latest short circuit requirements to EN 61914:2016 & IEC 61914:2015 standard. The cleats are manufactured from cast iron for high temperatures in the event of a fire. The cleats are designed to hold and retain cables in a single formation and tested in conjunction with FR type cable (BS 7846:2015) to BS 8491:2008 standard.
The CICC range cable cleats are marked “BICC COMPONENTS” along with the cable diameter range (XX-XX) accommodation covering diameters from 10mm to 51mm.
| Specification / Description | Clause | Classification |
|---|---|---|
| EN 61914:2016 & IEC 61914:2015 Resistance to Short Circuit: Single Core Cable |
6.4.4 – 1 Short Circuit | 30kA RMS / 75kA Peak |
| 6.4.5 – 2 Short Circuits | 30kA RMS / 75kA Peak | |
| EN 61914:2016 & IEC 61914:2015 Resistance to Short Circuit: Multicore Cable |
6.4.4- 1 Short Circuit | 1kA RMS / 2.5kA Peak |
| 6.4.5 – 2 Short Circuits | 1kA RMS / 2.5kA Peak | |
| BS 8491:2008 Fire / Direct Mechanical Impact / Water |
As per Standard | Flame Temperature: 830°C +40°C / -0°C |

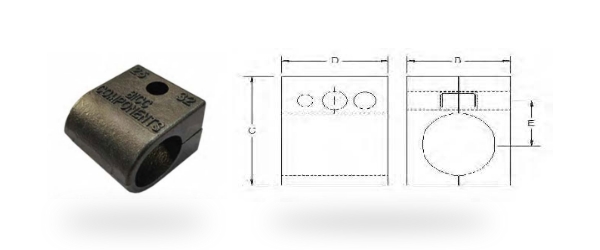

Cast Iron Claw Cleat (CICC-Cleat):
| Item Code |
Cable Diameters (mm) | Cleat Dimensions (mm) | Single Hole Fixings |
||||
|---|---|---|---|---|---|---|---|
| Min. | Max | W | H | D | P | ||
| CICC 10-13 | 10 | 13 | 29.5 | 37.5 | 46.5 | 16.0 | 1 x M10 |
| CITC 57-64 | 57 | 64 | 132.0 | 71.0 | 66.0 | 97.5 | 2 x M10 |
| CITC 64-70 | 64 | 70 | 133.0 | 86.5 | 63.5 | 103.0 | 2 x M10 |
| CITC 70-76 | 70 | 76 | 142.0 | 93.5 | 67.0 | 111.5 | 2 x M10 |
| CITC 83-89 | 83 | 89 | 152.0 | 106.5 | 70.0 | 122.0 | 2 x M10 |
| CITC 89-95 | 89 | 95 | 166.0 | 111.0 | 69.0 | 134.0 | 2 x M10 |
| CITC 145-152 | 145 | 152 | 260.0 | 188.0 | 120.0 | 209.0 | 2 x M10 |
Dimensions are displayed in millimeters unless otherwise stated.
Disclamier: The dimensions provided are for guidance only and BICC Components Ltd reserves the right to change these without prior notification. For any critical application please contact the sales office to check th latest data.
