Cable Cleat – AMC:
Application
In all cable installations, an essential factor is to ensure that all cables are secured with the correct cleats for the cable, application, and environment. The AMC range of cleats support and secure all cables in a various formation throughout the system during normal operation and during fault conditions that may occur. System integrity is maintained, and cable damage can be prevented.
The AMC range of cleats are designed to meet the latest requirements to EN 61914:2016 & IEC 61914:2015 Standard. The cleats are manufactured from LM6 grade die cast aluminium (base) and stainless-steel strap from 316L grade that have excellent durability characteristics, resistant to corrosion and adverse weather conditions. The cleats are designed to hold are trtain single core cables in a trefoil (three), quadrangle (four) and other formations.
The AMC range cable cleats are marked “BICC COMPONENTS” along with the cable diameter range (XX-XX) accommodation covering diameters from 24mm to 80mm.
| Specification / Description | Clause | Classification |
|---|---|---|
| EN 61914:2016 & IEC 61914:2015 Resistance to Short Circuit: Single Core Cable in Trefoil Formation* |
6.4.4 – 1 Short Circuit | 40kA RMS / 100kA Peak |
| 6.4.5 – 2 Short Circuits | 40kA RMS / 100kA Peak |
Cable Cleat – AMC:

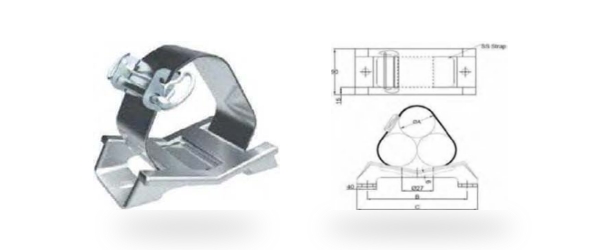

| Standard Duty | Heavy Duty | Trefoil Formation Cable Diameters (mm) | Single Formation Cable Diameters (mm) | Hole Centres ‘B’ (mm) | ‘C’ | ||
|---|---|---|---|---|---|---|---|
| Min ‘A’ | Max ‘A’ | Min ‘A’ | Max ‘A’ | ||||
| AMC1 | AMC51 | 24 | 34 | 36 | 65 | 100 | 120 |
| AMC2 | AMC52 | 30 | 41 | 60 | 85 | 100 | 120 |
| AMC3 | AMC53 | 37 | 47 | 80 | 90 | 100 | 120 |
| AMC4 | AMC54 | 43 | 54 | 85 | 110 | 105 | 131 |
| AMC5 | AMC55 | 43 | 60 | – | – | 105 | 131 |
| AMC6 | AMC56 | 56 | 67 | – | – | 105 | 131 |
| AMC7 | MAC57 | 63 | 73 | – | – | 150 | 170 |
| AMC8 | AMC58 | 69 | 80 | 120 | 145 | 150 | 170 |
| AMC9 | AMC59 | 80 | 120 | – | – | 150 | 170 |
Dimensions are displayed in millimeters unless otherwise stated.
Disclamier: The dimensions provided are for guidance only and BICC Components Ltd reserves the right to change these without prior notification. For any critical application please contact the sales office to check th latest data.
