Aluminium Two Bolt Cleat (ATC-Range):
Application
In all cable installations, an essential factor is to ensure that all cables are secured with the correct cleats for the cable, application, and
environment. The ATC series of cleats support and secure all cables in a single formation throughout the system during normal operation and during fault conditions that may occur. System integrity is maintained, and cable damage can be prevented.
The ATC range of cleats comply with latest requirements to EN 61914:2016 & IEC 61914:2015 standards. The cleats are manufactured from LM6 grade die cast aluminium with excellent corrosion characteristics and resistant to adverse weather conditions. The cleats are designed to hold and retain all types of cables in a single formation.
The ATC range cable cleats are marked “BICC Components” along with the cable diameter range (XX-XX) accommodation covering diameters from 30mm to 135mm.
The short circuit ratings mentioned below are based on single core cable formation as per the EN 61914:2016 & IEC 61914:2015 standards. Short circuit report for multicore cables is available upon request.
| Description | Clause | Classification |
|---|---|---|
| Type | 6.1.1 | Metallic |
| Operating Temperature | 6.2 | -40°C to +110°C |
| Impact Resistance | 6.3.5 | Very Heavy |
| Resistance to Short Circuit | 6.4.4 – 1 Short Circuit | 25kA RMS / 62.5kA Peak |
| Resistance to Short Circuit | 6.4.4 – 2 Short Circuit | 25kA RMS / 62.5kA Peak |
| Ultraviolet Light | 6.5.1 | Not Applicable |
| Lateral Retention | 6.4.2 | 8 kN |
| Corrosion Resistant | 6.5.2.2 | High |
| Axial Retention | 6.4.3 | 0.2 kN |
| Needle Flame | 10.1 | >120 sec |
Aluminium Two Bolt Cleat (ATC-Range):
| Item Code |

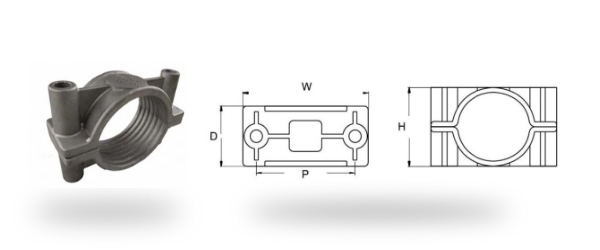

Cable Diameters (mm) | Cleat Dimensions (mm) | Hole Fixings |
||||
|---|---|---|---|---|---|---|---|
| Min. | Max. | w | H | D | P | ||
| ATC 30-40 | 30 | 40 | TBA | TBA | TBA | TBA | 2 x M10 |
| ATC 40-50 | 40 | 50 | 96.0 | 55.0 | 59.0 | 76.0 | 2 x M10 |
| ATC 51-57 | 51 | 57 | 99.0 | 62.0 | 49.0 | 76.0 | 2 x M10 |
| ATC 57-64 | 57 | 64 | 118.0 | 69.0 | 49.0 | 95.0 | 2 x M10 |
| ATC 64-70 | 64 | 70 | 115.0 | 85.0 | 44.0 | 90.0 | 2 x M10 |
| ATC 70-76 | 70 | 76 | 134.0 | 87.0 | 47.0 | 109.0 | 2 x M10 |
| ATC 76-83 | 76 | 83 | 142.0 | 96.0 | 51.0 | 116.0 | 2 x M12 |
| ATC 83-89 | 83 | 89 | 147.0 | 97.0 | 60.0 | 116.0 | 2 x M12 |
| ATC 89-95 | 89 | 95 | 156.0 | 104.0 | 61.0 | 128.0 | 2 x M12 |
| ATC 95-101 | 95 | 101 | 151.0 | 110.0 | 64.0 | 124.0 | 2 x M12 |
| ATC 101-108 | 101 | 108 | 172.0 | 120.0 | 60.0 | 140.0 | 2 x M12 |
| ATC 108-114 | 108 | 114 | 172.0 | 126.0 | 76.0 | 149.0 | 2 x M12 |
| ATC 114-120 | 114 | 120 | 172.0 | 154.0 | 76.0 | 149.0 | 2 x M12 |
| ATC 120-125 | 120 | 125 | 172.0 | 160.0 | 76.0 | 149.0 | 2 x M12 |
| ATC 125-135 | 125 | 135 | 193.0 | 143.0 | 72.0 | 163.5 | 2 x M12 |
Dimensions are displayed in millimeters unless otherwise stated.
Disclamier: The dimensions provided are for guidance only and BICC Components Ltd reserves the right to change these without prior notification. For any critical application please contact the sales office to check th latest data.
